整機操作重量

Overall Operating Weight

9800KG

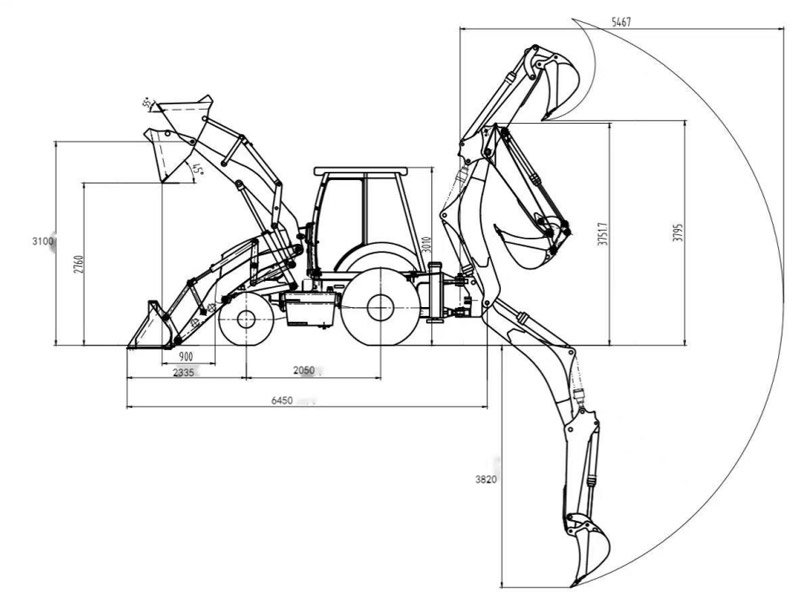

運輸尺寸Transport Dimension

長×寬×高mm L*W*H

6450x2490x3100mm

zui小離地間隙

Min. Ground Clearance

450mm

裝載斗容 Bucket Capacity

1.2m³

裝載舉升能力

Loading Lifting Capacity

2500KG

鏟斗卸載高度

Bucket Dumping Height

3050mm

反鏟斗容

Backhoe Capacity（Width）

0.3m³

zui大挖掘深度

Max. Digging Depth

3820mm

Axle track軸距

2335mm

Wheelbase輪距

2050mm

發動機Engine

型號Model

Yuchai玉柴YUDONG115馬力

型式Type

渦輪增壓、四沖程、

額定功率Rated Power

85KW

額定轉速Rated Speed

2200r/min

可選發動機Optional engine

康明斯CUMMINS 75KW  濰柴WEICHAI75KW 菲亞特FEIYATE（EPA4）75KW

轉向系統Steering System

轉向角Steering Angle

±36 ^o

zui小轉彎半徑

Min. turning radius

6581mm

系統壓力

Pressure of the system

12Mpa

驅動橋Axle

型號Model

 國產30轉向橋Domestic 30 steering bridge

驅動方式Drive type

Four wheel drive四輪驅動

傳動系統Transmission System

變矩器Torque Converter

型號Model

290

冷卻方式Cooling Method

油冷壓力循環Oil-cooling Pressure Circulation

變速箱Gearbox

型式Type

動力換檔Power Transmission

檔位數Gears

前進4檔，后退4檔Two Gears Ahead, Two Gears Astern

zui高車速M(fèi)ax.Speed

24Km/h

輪胎Tyre

規格Model

甲字牌16.9-28（前）  16.9-28（后）

前輪氣壓

Pressure of Front wheel

0.4 Mpa

后輪氣壓

Pressure of Back Wheel

0.35 Mpa

制動系統Brake System

行車制動Service Brake

油頂油鉗盤制動Oil Over Oil Caliper Brake

自調節Self-regulation

自平衡Self-balance

駐車/緊急制動

Emergency Brake

手動實施制動Operation Power Implementing brake

手動解除制動Manual Operation Power Terminating Brake

液壓系統Hydraulic System

液壓系統壓力

Pressure of Hydraulic System

20Mpa

標配

前鏟帶鏟斗，后挖帶挖斗，豪華內飾駕駛室，空調，暖風，倒車影像，預留破碎錘管路，國產變速箱，駕駛室警燈，風扇，豪華可調式旋轉座椅，可調式儀表盤，前鏟先導操作，后挖先導操作，玉柴85KW發動機，320變速箱，H形支腿帶鎖止

注：以上參數或者配置如有變更，怒不另行通知。

The parameters or configuration are subject to change without notice.
