630裝載機: 瀏覽：　　　日期：2025-12-09　　作者：青州成宇工程機械有限公司

產品描述

Performance	1	額定載重量rated loading	3000kg
	2	整機重量overall weight	9900kg
	3	斗容量bucket capacity	1.8m³
	4	zui大牽引力maximum tractionforce	95KN
	5	zui大掘起力 maximumbreakout force	127KN
	6	zui大爬坡能力maximum grade ability	30℃
	7	zui大卸載高度maximum dump height	3200mm
	8	zui大卸載距離maximum dump reach	1006mm
	9	整機外形尺寸overall dimension (L×W×H)	689024303070mm
	10	zui小轉彎半徑minimum turning radius	5097mm
發動機Engine	11	型號model	Deutz enginesWP6G125E22
	12	型式type	直列、水冷、四沖程、直噴 Vertical, in-line, water cooled, 4-stroke diesel engine
	13	汽缸數-缸徑行程N(yùn)O. of cylinder-borestroke	6-108*125
	14	額定功率rated power	92kw—2200r/min
	15	zui大扭矩maximum torque	500N.m
	16	zui低燃油消耗率 min. fuel-consume ratio	≦210Kw/h
傳動系統 Transmission system	17	變矩器型式torque converter	YJ315-X
	18	變速箱型式gearbox mode	定軸常嚙合式428型 Power shaft normally engaged straight gear
	19	檔位數gears	前進檔4個，倒退檔2個 4forward 2 reverse
	20	zui高車速maximum speed	40km/h
驅動橋Drive axles	21	主減速式：main reducing spiral	螺旋傘齒輪一級減速bevel gear grade 1reduction
	22	輪邊減速型式decelerating mode	一級行星減速 Planetary reduction grade 1
	23	軸距wheel base (mm)	2660mm
	24	輪距wheel tread	1800mm
	25	zui小離地間隙ground clearance	400mm
液壓系統 Hydraulic system	26	系統工作壓力system working pressure	16,5MPa
	27	動臂提升時間boom lifting time	4.83S
	28	三項和total time	9.15±0.5s
制動系統 Brake system	31	行車制動service brake	氣頂油鉗盤式四輪制動 air assist disc brake on 4 wheels
制動系統 Brake system	32	駐車制動parking brake	手動嵌盤式 Manual disk brake
輪胎 Tyre	33	規格type specification	17.5-25
	34	前輪氣壓front tyre pressure	0.4Mpa
	35	后輪氣壓rear tyre pressure	0.35Mpa

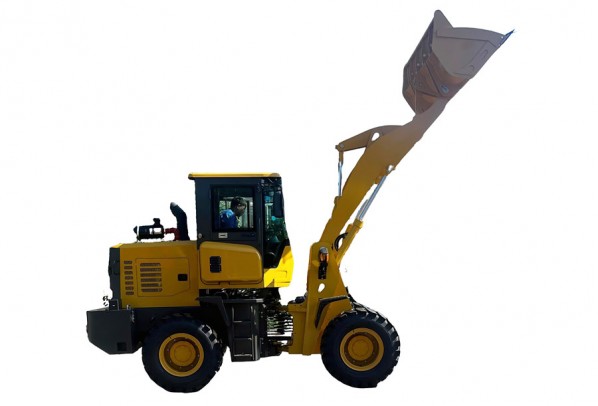

630裝載機
